Details
PYGD-1850FS High Speed 4&6 Corner Folder Gluer: With independent synchronized motors for stable running. Specially designed extra wide and strong upper & lower belts for corrugated boxes.
|
Name |
PYGD-1850FS |
|
Model |
PYGD-1850S EXPORT |
|
Cardboard |
200-800 g/m² |
|
Corrugated board |
A/B/C/E/F-Flute Optional EB/AB-Flute |
|
Max. Belt Speed |
Max. 280 m/min |
|
Jogging Speed |
20 m/min |
|
Max. Air Requirement |
0.7 m³/min |
|
Feeding way |
Automatically and continuously feeding |
|
Way of folding |
Fold 1 and fold 3 are 180°and 135°, Fold 2 and fold 4 are 180°, Bottom folded and glued 4&6 corner |
|
Glue Material |
Water-base cold glue |
|
Total Power Requirement |
26KW 380V 50HZ 3P |
|
Weight |
8.7 Ton |
|
Over dimension |
18.5x 2.8x 1.9m (1650/1850/2050) |
PYGD -1850FS EXPORT Series folder gluer machine,
- Independent Synchronized motors throughout entire machine for stable running
- Extra wide and strong upper and lower belts specially designed for corrugated boxes
- Motorized carrier system for easy operation
- Upper carrier electrical-driving system and pneumatic pressing system applied for corrugated board
- Special fish tail features designed for corrugated box common problems

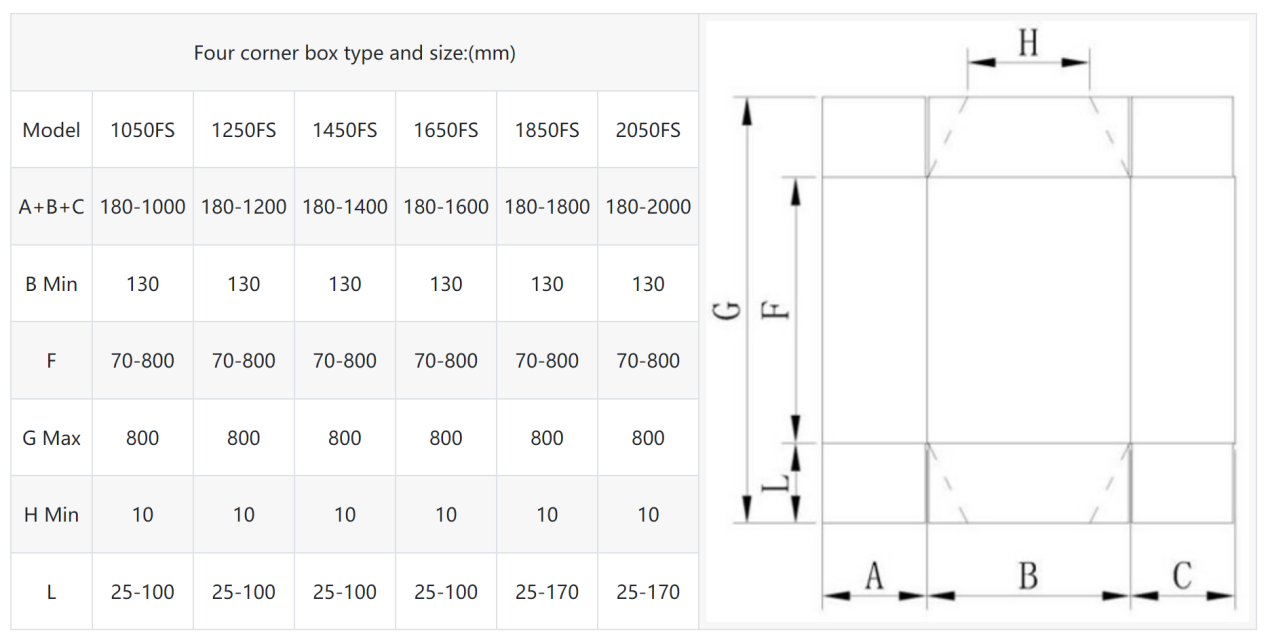

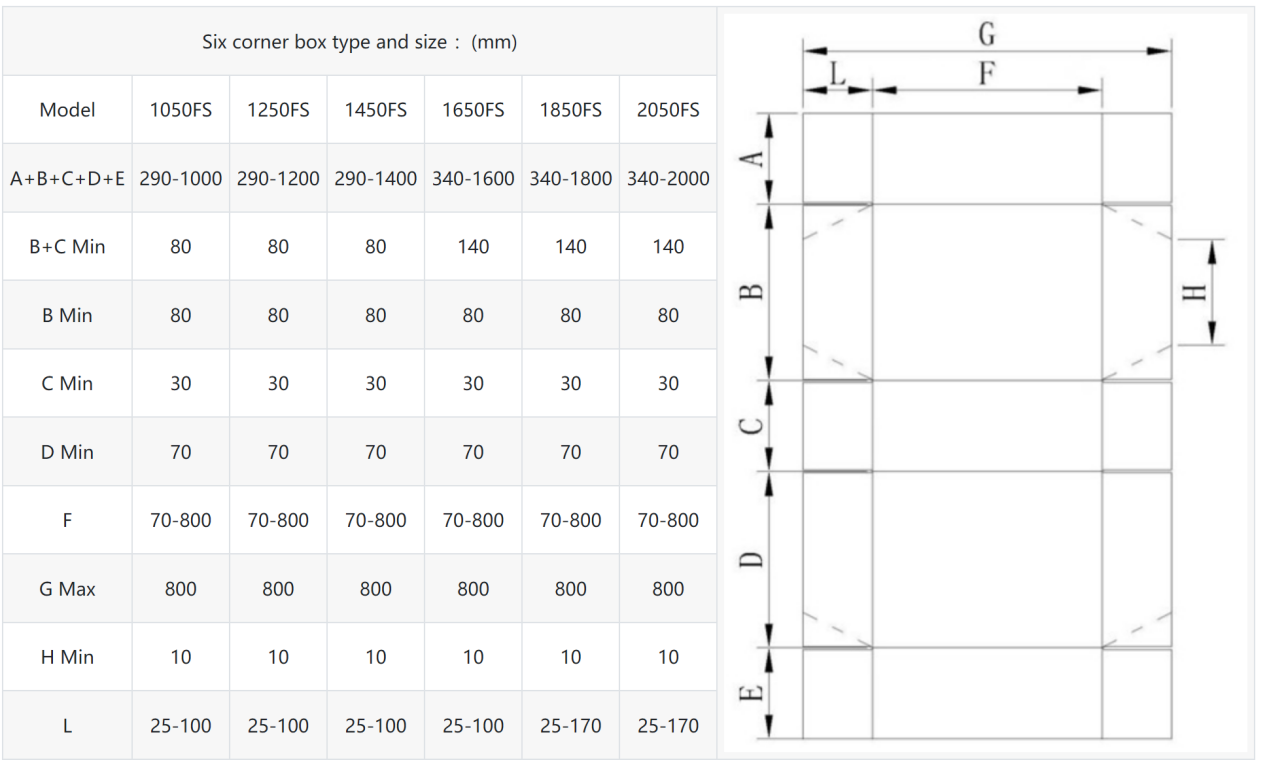

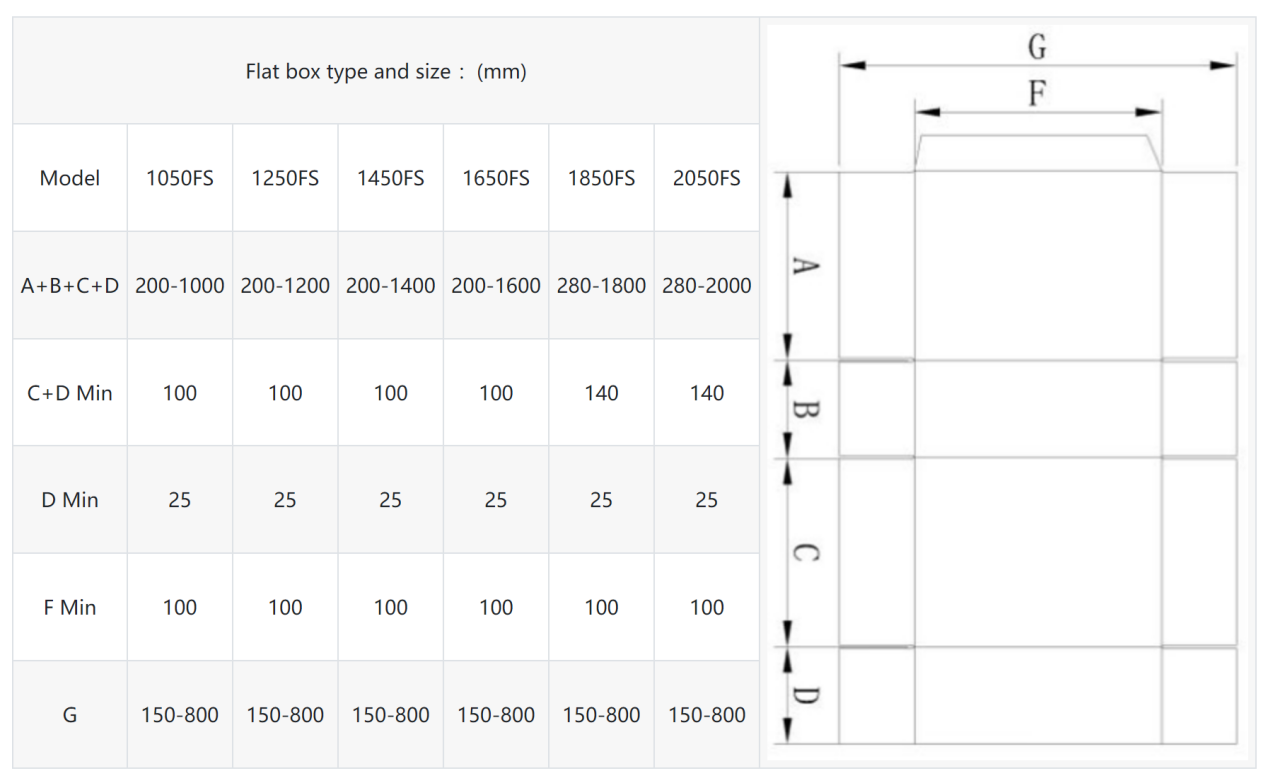

(We can customize for other sizes.)

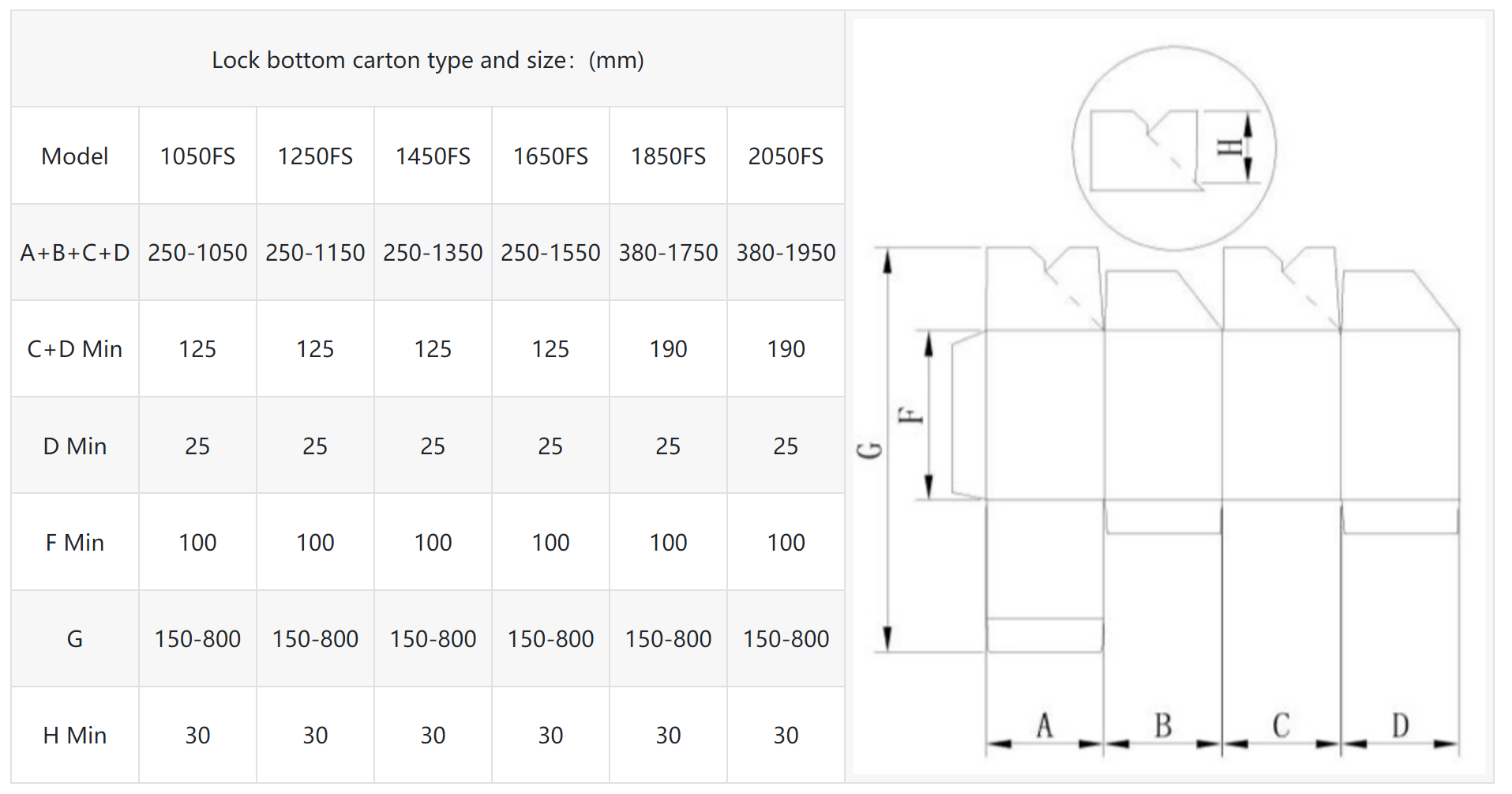

Over dimension
Feeding
Adjustable feeding belts to ensure easy adjustment,
stable and smoothly feeding.
Continuously Variable Speeder to ensure feeding
internal and stable transmission.
One-touch Pneumatic knife, easy for the
adjustment of feeding belts.

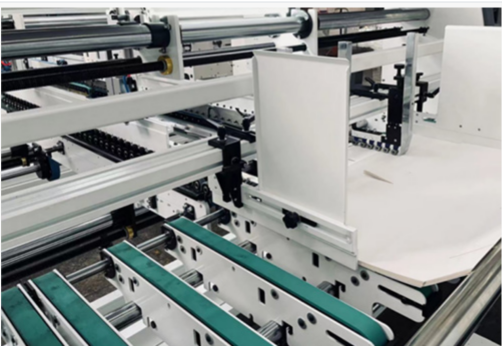

Alignment
Alignment section, which automatically corrects the box
after it is ejected from the paper feed section.

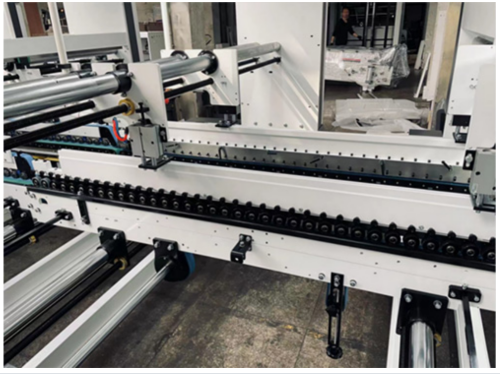

pre-folding & Back Folder
Pre-fold and back folder section: Equipped with right/ left pre-fold
to complete 180° pre-folding on small side. Equipped with right/left
to complete 135°pre-folding, according to the size of the box,
thus making it easier to spread cartons
Bottom-lock& Back Folder
Bottom Gluer section: All gluing drums can be loaded and unloaded;
Two upper gluing drums (right and left)
and two lower gluing drums (right and left),
to be selected depending on actual needs;
Glue quantity in gluing drums
is adjustable, thus ensuring stability and easy maintenance;
Gluing roller is 4mm thick in standard version and can be
customized according to customer requirements;
Made with aluminum, gluing drum is firm and durable;
Bottom gluing is completed by 4 groups of crash-locking mechanism.
Folding
Lengthened folding to avoid the unevenness while the rapid
forming of cartons and make it come to perfection.

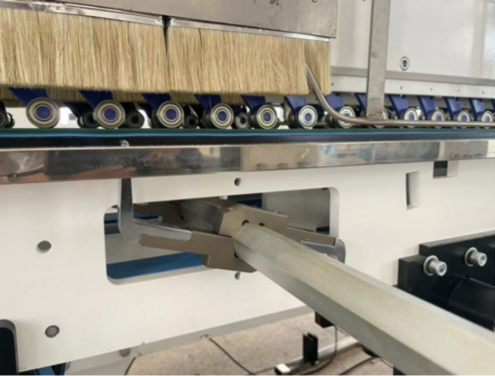

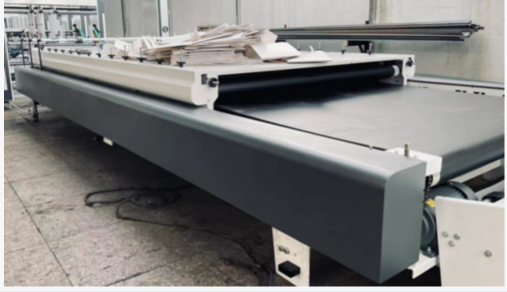

Full pressing
Creaser section: Adopts continuous and automatic box collecting
mechanism to ensure boxes enter the Conveyer section neat and
well aligned; Equipped with electronic counter/automatic mark
spraying kick plate for counting and mark-spraying purposes;
Equipped with air compressor system and creasing channel system;
Pressure rollers can be adjusted depending on box types
and paper quality to achieve flawless box creasing.
Transmission
Equipped with feeding paper inspection device.
Equipped with impacting device to press the paper
after accounting and make it easy to pack paper.
4&6-corner section
4&6-corner section: Rear-crash lock of mechanical operation
in coordination with paper delivery photoelectric, thus ensuring
every box continuously and accurately crashlocked and speedily,
stably to make 4&6 angle box.

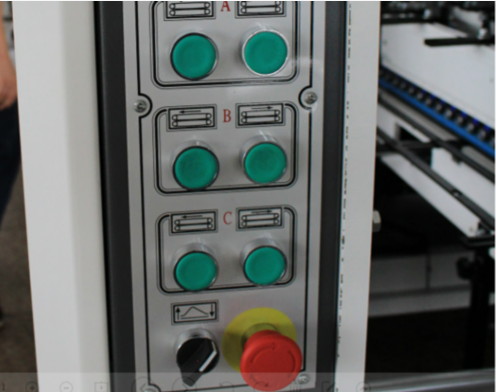

Auto motor adjust
The machine adapt electrical plate adjustment,fast to adjust

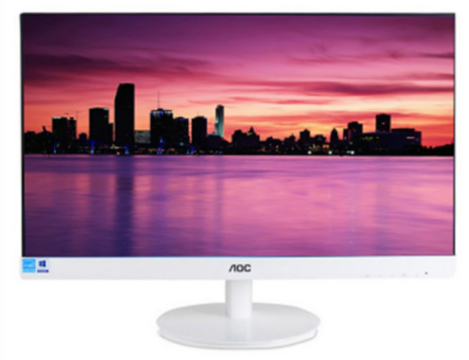

CCTV monitors
The machine adapt CCTV monitors could see machine product

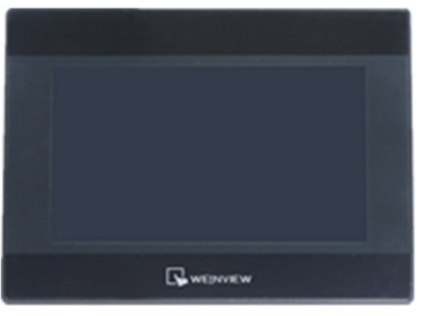

touchscreen
The machine adapt touchscreen adjustment, fast to adjust

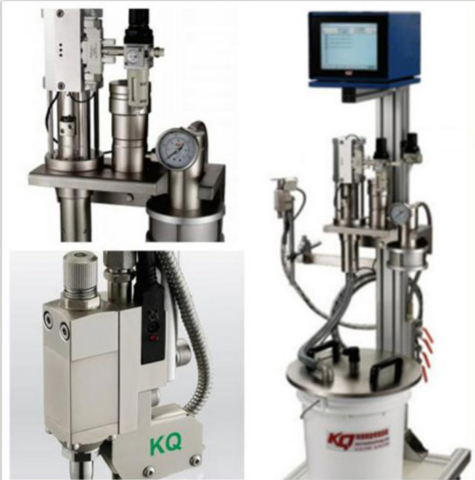

Spraying System (water-base cold)
For irregular box, Need Extra Spraying System.
Equipped with three guns, convenient in the
production various special box, gluing quickly
and accurately sizing.
(Options: customized on user order)
