Double-head semi-automatic stitcher machine (four servo)

1. Single Nail, double nail, reinforced nail can be done at one time. 2. A dual-purpose can nail single, double, irregular carton. 3. One minute quick size change, easy operation without experience.

Views：

1000

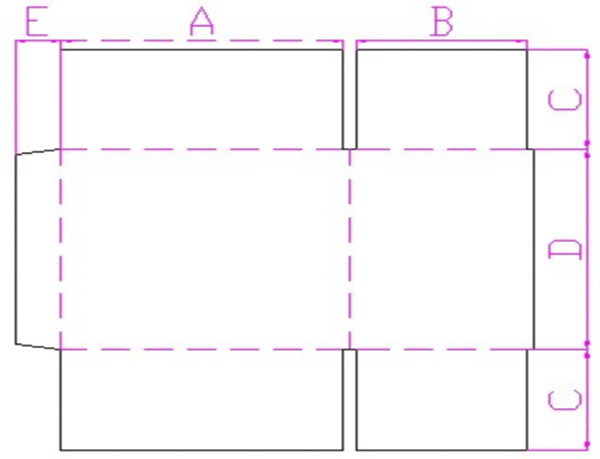

1. Four servo control double-chip stitcher Box machine part parameters：

Parameter description:

Type and parameters (The data in parentheses is actually over paper)	2100（1600）	2600（2100）	3000（2500）	3500(3000)
Max paper size（A+B）＊2（mm）	3200	4200	5000	6000
Min paper size（A+B）＊2（mm）	1060	1060	1060	1060
Max Carton length Amm	1350	1850	2350	2850
Min Carton length Amm	275	275	275	275
Max carton width Bmm	1000	1000	1200	1500
Min carton width Bmm	140	140	140	140
Max paper height（C+D+C）（mm）	2500	2500	2500	2500
Min paper height（C+D+C）（mm）	350	350	350	350
Max rocker cap size C（mm）	560	560	560	560
Min rocker cap size C（mm）	50	50	50	50
Max height D（mm）	2000	2000	2000	2000
Min height D（mm）	150	150	150	150
Max pin tongue width(mm)	40	40	40	40
Nail pitch mm	30-120	30-120	30-120	30-120
Number of nails	1-99	1-99	1-99	1-99
Nail speed (times/MIM)	500	500	500	500
Machine weight（T）	2. 5	2. 8	3	3. 5

2. Four servo control double-chip nail box machine main functions and spare parts

Number	Name	Brand		Place of origin	Notes
01	Head servo motor	Yasukawa		Japan
02	Paper feeding servo motor	Yasukawa		Japan
03	PLC	Mitsubishi		Japan
04	Contactor, intermediate relay	Shilin		Taiwan
05	Reducer	New Treasure		Japan	２
06	Reducer	Reputation		Hangzhou	2
07	Photoelectric proximity switch	Omron		Japan
08	Touch screen	Waylon	Taiwan
09	Circuit Breakers	Schneider	France
10	Bearing	Wanxiang	Hangzhou
11	Nail Head Group	Changping	Guangdong
12	Cylinder, solenoid valve	Yadek	Taiwan

1. Single Nail, double nail, reinforced nail can be done at one time.

2. A dual-purpose can nail single, double, irregular carton.

3. One minute quick size change, easy operation without experience.

4. The paper feeding section counts automatically and sends out bundling in bunches.

5. After the automatic counting, finished pieces can be set according to the number of sheets (1-99) stacked to the end of the conveyor.

6. Used for small and medium size color printing carton of three or five layers

7. It is controlled by Taiwan Waylon touch screen. The nail pitch can be set directly on the touch screen for easy operation.

8. Adjust the pin pitch, use the computer to set the pin pitch automatically.

9. Imported four-servo Yaskawa brand system control, nail spacing is longer and more stable, more accurate.

10. Japanese Omron PLC control system. .

11. Nailed head whole group of Guangdong Changping production, all imported Japanese mold steel production, computer gongs precision processing.

13. The base mould and blade are made of tungsten steel imported from Japan (wear resistance) .

14. Control box electrical components Taiwan Schneider brand and French Schneider brand.

16. All pneumatic components are under the brand name of Taiwan Yardke.

17. Large and small plate flat wire universal

18. Electric rear baffle, high and convenient adjustment box

19. The thickness of paperboard is adjusted by electric
