XT-D Computerized High Speed Flexo Printer Slotter Die Cutter

Detailed introduction：

FEATURES IN PERFORMANCE

Complete Machine

• Whole machine’s wall panel are made from 15% Manganese steel, its high abrasion resistance,proper hardness,high elasticity.

• We have 8 sets of CNC ,more than 90% parts are made in my factory,quality can be control more better .

• Whole machine with high quality, high standard with reliable safety design，with heavy duty construction.

• Independent PLC each section with colorful interface touch screen, easy operate display.

• International brands spare pars electric elements high standard quality material parts suppliers.

• Applied VFD (Variable Frequency Drives) control suction volume due to different boards’ size  also suitable for bent boards.

• All the transmission gears are use the 20CrMnTi Alloy steel that carton treatment，precision grinded ,rigidity HRC58-62,6 grade precision,spray lubrication system for gears.

• Whole machine with expansion sets tight links to make sure precise printing registration.

• Automatic stored and recalled orders, quick order change and high efficiency.

• The machine includes the “Remote access”with helps to find fault detection, reducing down-time and maintenance cost.

• Whole machine equipped with high-precision ball lead screw which make sure the adjustment more precise also durable.

• Boards guide wheels can fast adjust with fast lock unlock design to save time.

• Main motor with start delay protection function.If all the units locked well,the main motor will work.

• The automatic alarm can reduce paper waste when the ink shortage.

• More than 90% of the electrical elements are international famous brand.

• There are color touch screen.

• Memory the machine when producing products, such as clean the printing rubber/Studio, when you close the units again, the data you had already set will be reset automatically ,you dont need set again, It can save time and cardboard.

• With orders saved memory storage, save order date, fast order changed and easy operate.

• All units use pneumatic lock.

• Electricity apart,feeding wheels will stop when apart the machine to make sure the printing accuracy next time.

• Top printing, down die-cutting, clean up scraps thoroughly.

• Quick printing plate mounting, motorized phase zero.

• Powerful dust remover, with anti-static bar, centralized dust collection, less ECT loss.

• High precious transfer structure with shafts  transfer , good registration accuracy.

• Choose international brand electric components and transfer bearings, pass CE certification.

• Creasing-slotting unit, prevent creasing line from bursting,better folding.

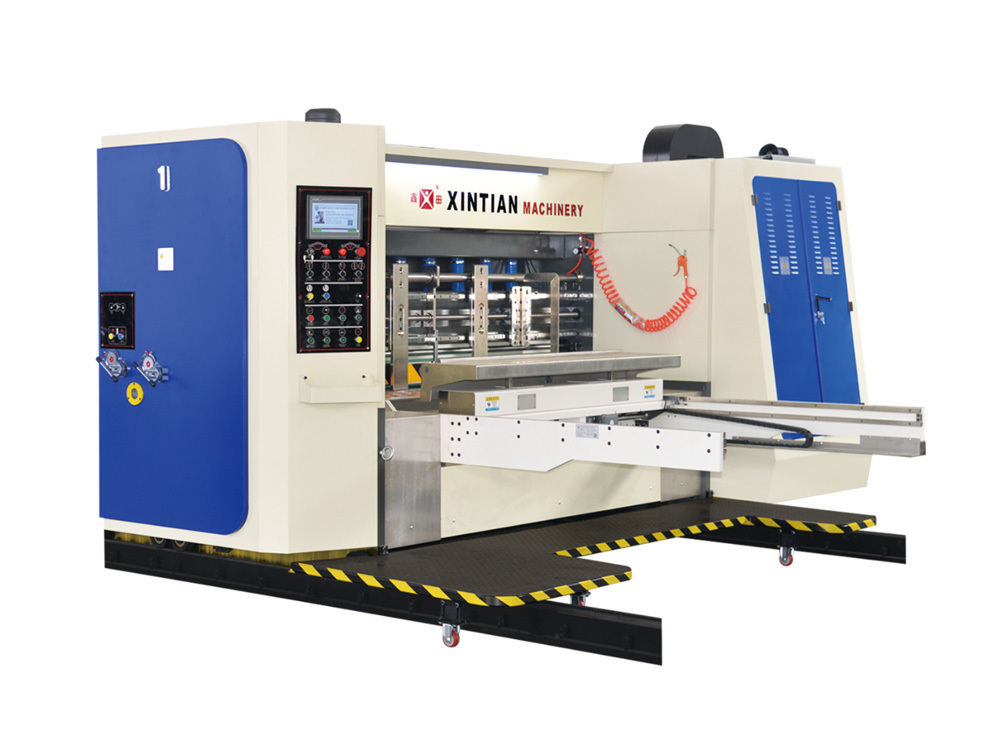

Lead Edge Feeder





• Lead edge feeder with gear-box.

• Optional: Non-crush lead edge feeder(Servo motor drive).

• Extended anti-static dust removing system, reduce the down-time for printing plate cleaning.

• Variable frequency drive air(VFD), volume control according on the board’s size also suitable for bent boards, precise feeding.

• Double pulling rollers ,blower with brushes dust remover, cleaning the dust scrap on the surface of the paper.

• Pneumatic side patting, front side baffles and back side baffles motorized adjustment.

• Precious liner guideway lateral moving.

• Motorized side squaring and paper support.

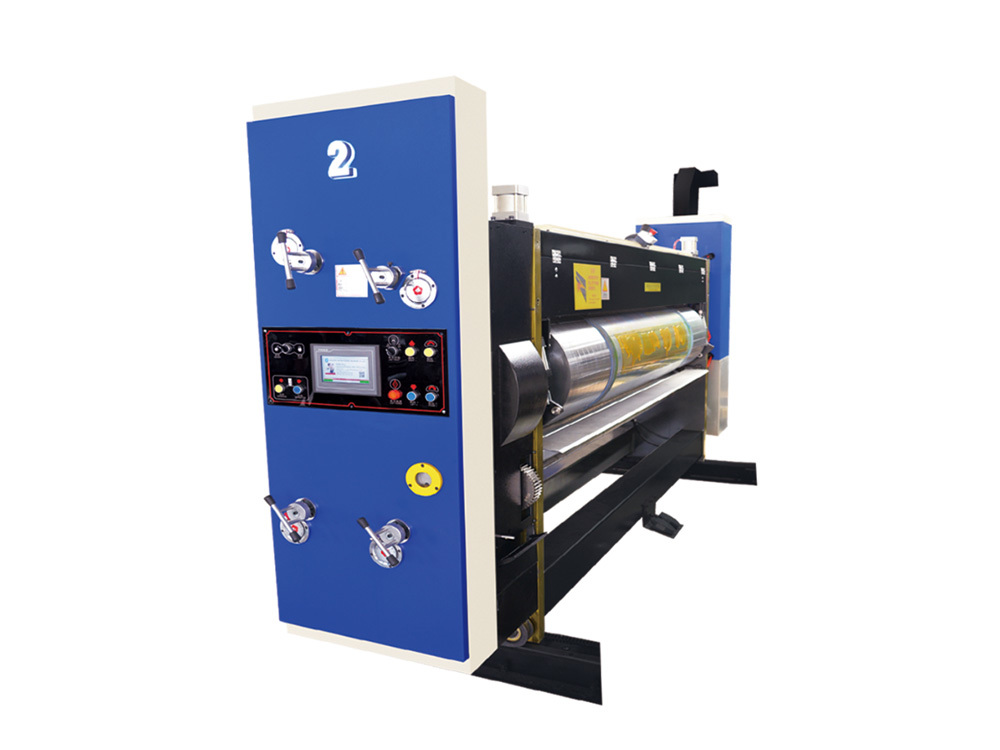

Printer unit





• Registration adjusted by feeder PLC sections’PLC.

• Top print, high precious transfer structure with rollers transfer , good registration accuracy.

• Quick printing plate mounting, motorized phase zero by inverter .

• Ink saving circulate system, safety ink taking, short ink alarm.

• Option: Ceramic roller with doctor blade.

• Boards pull wheels fast lock lateral move system.

• Manual gap pressure adjust, print cylinder lateral move motorized.Roll-to roll or single/chamber doctor blade inking system by option.

• Double diaphragm ink pump.

• Auto register reset system after printing plate are cleaned.

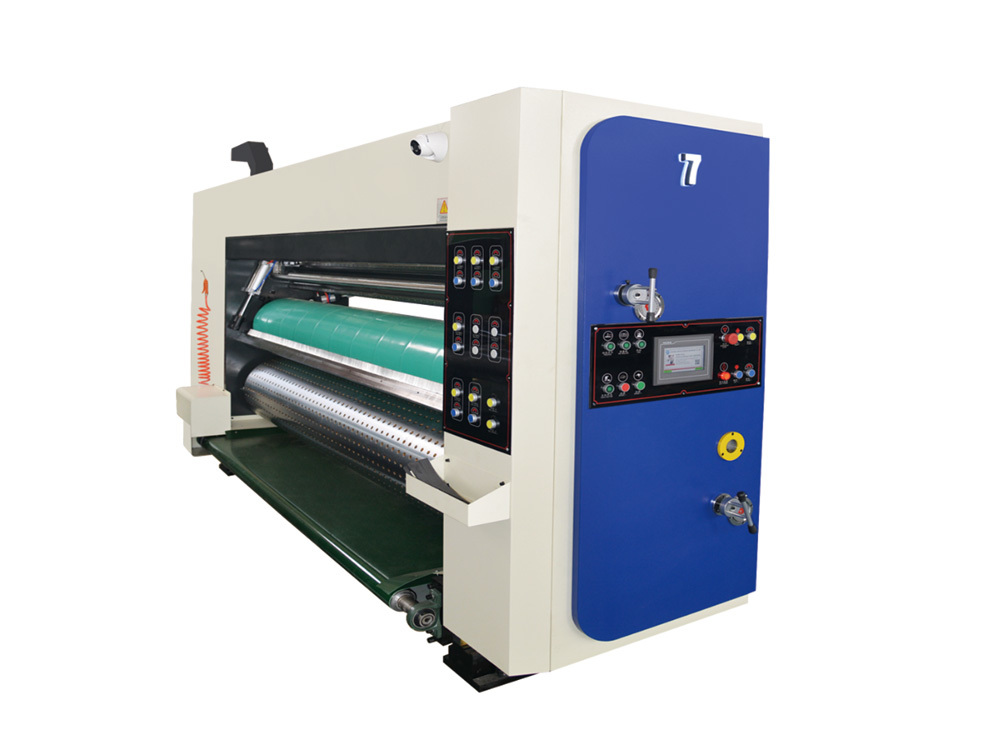

Slotter unit (Single shaft )





• Slotter unit use six axis design,eight axis design is optional. (pre-creaser, second-creasers, slotter)

• The slotting boss move along linear guides driven by lead screw for more flexible and precise movement.

• Liner guideway lateral moving device with universal cross joints.

• Precious ball screw shaft, high rigid guiding cast, long life time.

• Pre-creaser, creaser slotting holder manual gap control.

• Box height manual control.

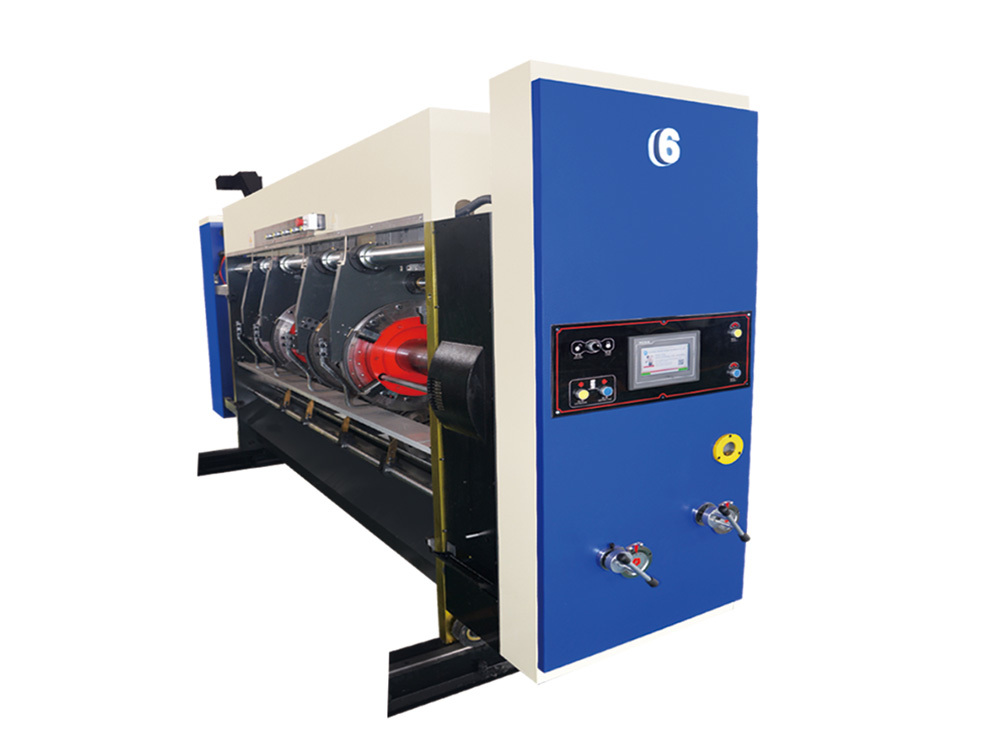

Die-cutting Unit





• Up die-cutting, clean up scrap thoroughly,manual die-cutting pressure adjustment.

• Registration adjusted by feeder PLC& sections PLC.

• Die-cutting roll pneumatic self-locking device, smooth die-cutting.

• Fast-changing import anvil cover, mechanical speed compensation.

• Precious settable speed difference compensation, ensure die-cutting accuracy.

• Lateral adjustment with 10mm of die cut drum.

• Mechanical lateral oscillating of anvil drum within 20mm.

Stripper and Stacker unit





• Stacker operate automatic or manually.

• Pneumatic lifting device for receiving arm , tightness degree adjustable.

• Different speed section type stacking, transfer belt inverter control.

• Stacker platform lifting inverter control, protection device  for lifting safety.

• Side square. Pneumatic stacker lifting.

• Belt transfer, angle adjustable fan assistant clean upscrap.

• Dual vibration roll, speed frequency invert control.

• Powerful fan clean up scraps.
